Ladder Cable Trays
Ladder Type Cable Trays

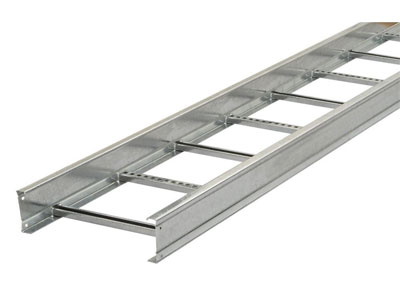

Ferrotech Ladder Cable tray has two side rails connected by rungs. This type of cable tray is effective because the ladder rungs give you easy accessibility to the cables, from the top or bottom.
The rungs of the ladder cable trays provide convenient anchors for tying down the cables in the non-horizontal cable tray runs or where the positions of the cables must be maintained in the horizontal cable tray runs.
- Width – 150 mm to 1200 mm
- Runner Height (H) – 50 mm to 150 mm
- Runner Collar (C) – 12 mm to 45 mm
- Rung Size – 35×15 mm, 40×20 mm, 50×20 mm
- Rungs Intervals – 250 mm or 300 mm
- Rung Slot Size – 25×10 mm Width Spacing, 10 mm/15 mm gap
- Thickness(T) – 1.6 mm to 3.0 mm
- Tray Length (L) – 2500 mm or 3000 mm
- Material – Mild steel, Stainless steel, Aluminum, GI sheet
- Finish – Hot Dip Galvanized, Powder Coated, Pre-galvanized
Ladder Accessories
Ferrotech is the leading and foremost manufacturers of ladder accessories in India. Our company is committed to quality, and we greatly offer products according to our customer’s demand and satisfaction by providing various specifications. The products available are known for their safe usage.

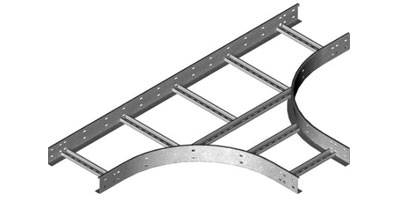

TEE BEND
HORIZONTAL BEND (30°, 45°, 60° AND 90)

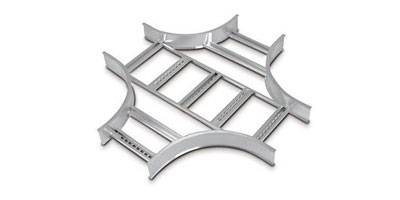

HORIZONTAL CROSS

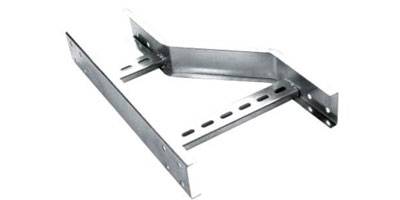

REDUCER – (RIGHT)
REDUCER – (CENTER)
VERTICAL INNER BEND (30°, 45°, 60° AND 90°)

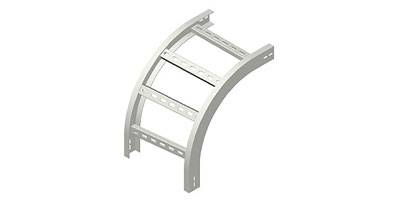

VERTICAL OUTER BEND (30°, 45°, 60° AND 90°)
